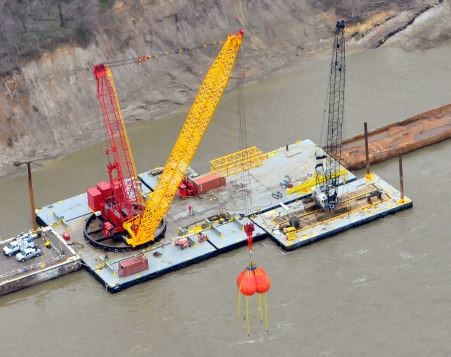

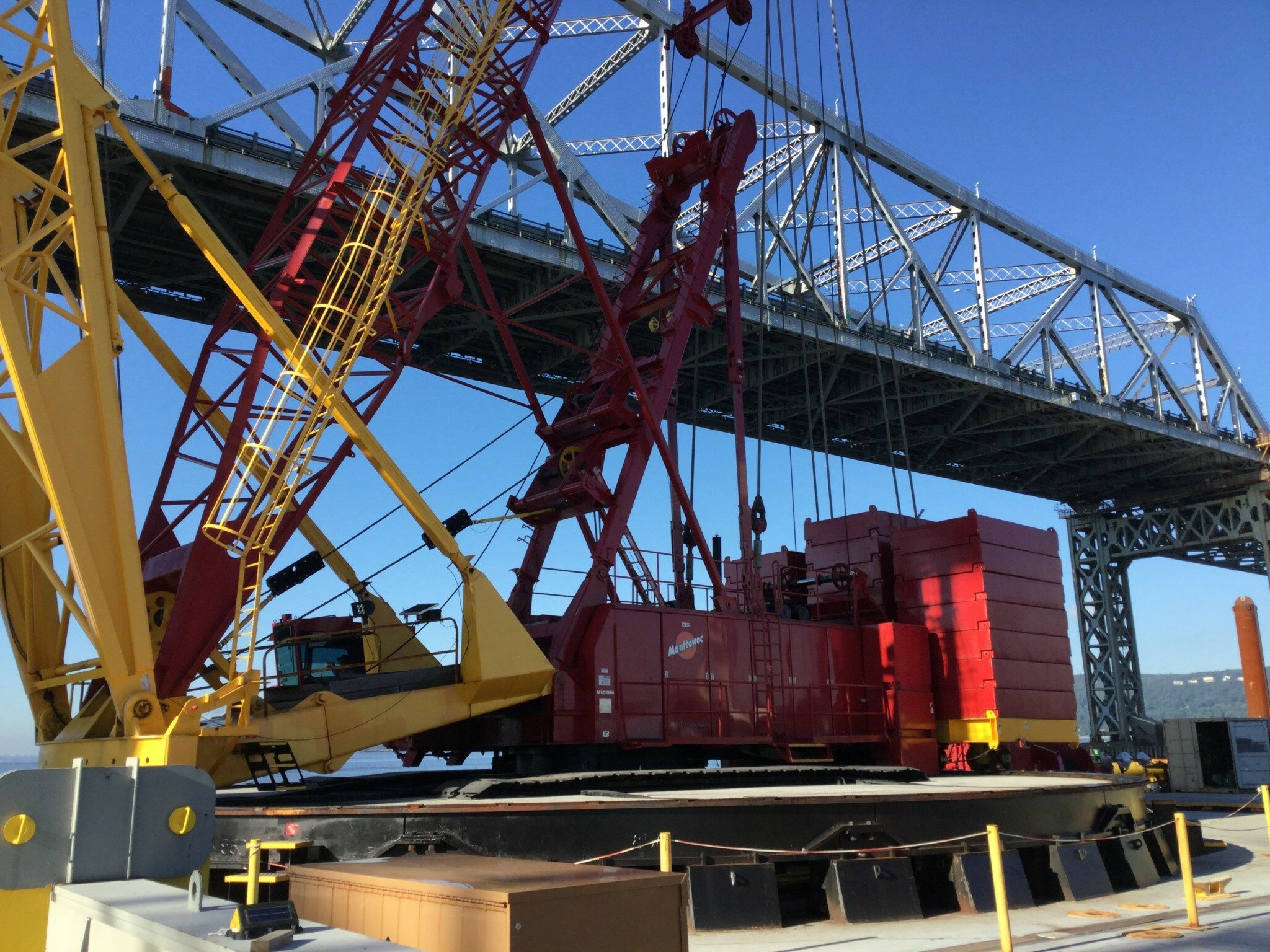

Traylor Bros., Inc. has a 750-Ton capacity Manitowoc 4600 Series 4 crane with a Series 3 Ring mounted on a barge available for rent.  The Crane was refurbished in 2013 with a Tier 3 Cummins engine.  The crane ring combination is permanently mounted to a 5 section 10 foot deep modular crane barge built in 2012.  The crane barge arrangement can maintain ½ degree machine list when working with maximum counterweight and 360 degree rotation.

Crane / Ring Specifications

  • 1.38 inch wire rope with 2,900 feet storage capacity
  • Maximum Counterweight is 123,000# crane counterweight & 978,700# of Auxiliary Counterweight. Lessor counterweight options are available.
  • #65 Main Boom
    • 400 foot length with 0 degree list
    • 360 foot length with ½ degree list
    • 320 foot length with 1 degree list
  • #27AB Jib (80 – 120 feet available)
    • 320 feet + 100 feet length ½ degree list
  • Modular enclosed walkways within the ring for added safety



Barge Specifications

  • 225 feet long x 126 feet wide x 10 feet deep barge assembly
    • (1) 225 feet long x 70 feet wide x 10 feet deep main barge
    • (2) 84.7 feet long x 28 feet wide x 10 feet deep sponson barges
    • (2) 40 feet long x 28 feet wide x 10 feet deep sponson barges
  • 36 inch diameter x 90 feet long power spuds
  • Ring center is mounted 45 feet from the stern
  • 4 feet barge draft
  • Year:
  • Model #: Manitowoc 4600 S4 + S3 Ring
  • Equip #: A-95 / A-96 / N181
  • Serial #: 460074 / 10321
  • Location: Kentucky
  • Availability: Available Now
  • Rental Terms: View
